80mm Anti-vibration Solid Rubber Base, 20mm Deep, Stackable - 1PC

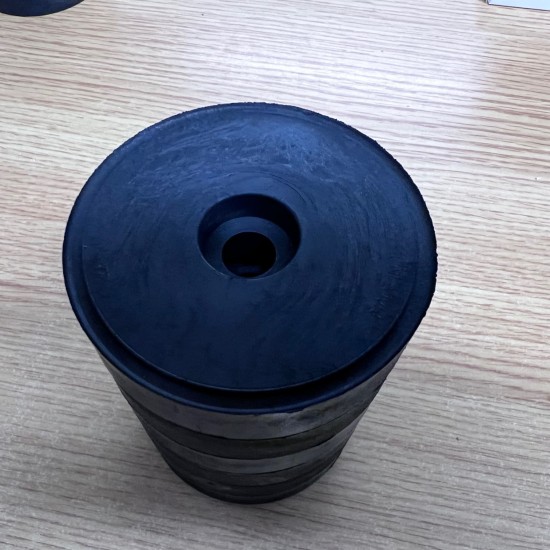

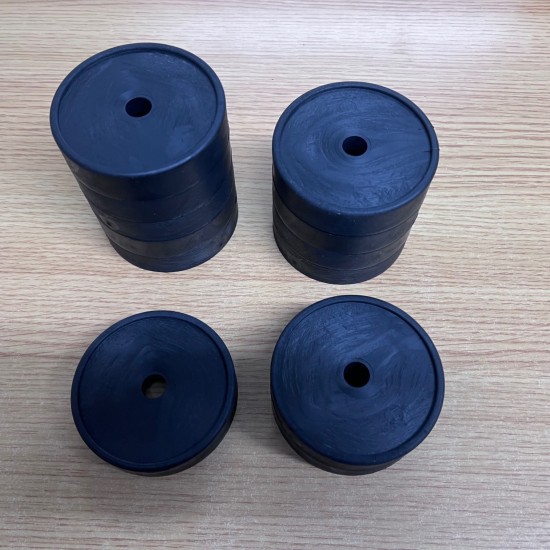

80mm Rubber Base made of solid TPV rubber - Stackable and index together

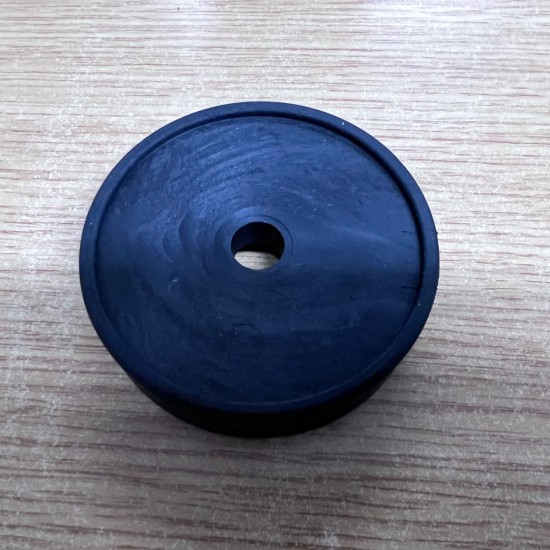

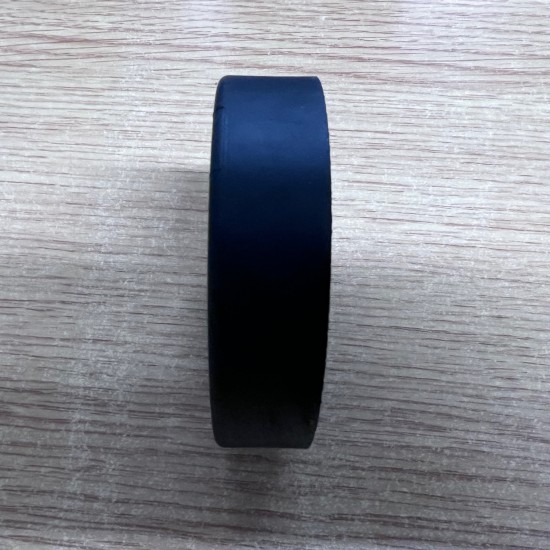

Dimensions - 80mm diameter, 20mm deep (18mm when stacked), the recessed flat area on top is 73mm diameter and is 2mm deep.

Materials - Made from solid TPV thermoplastic rubber, shore A hardness 85, (medium to hard),
providing excellent chemical resistance to oil and grease, temperature range -60° to 135° C

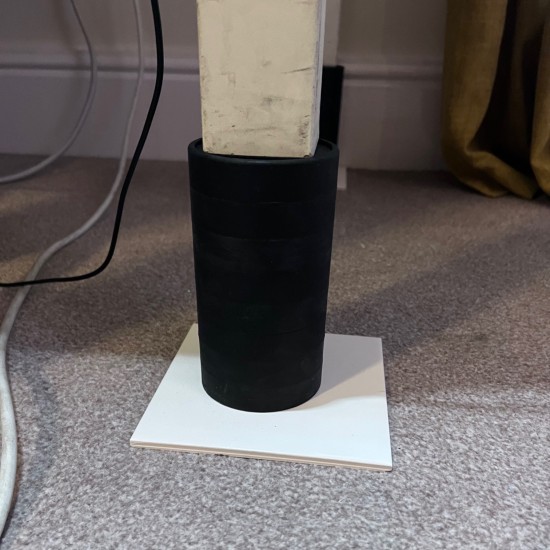

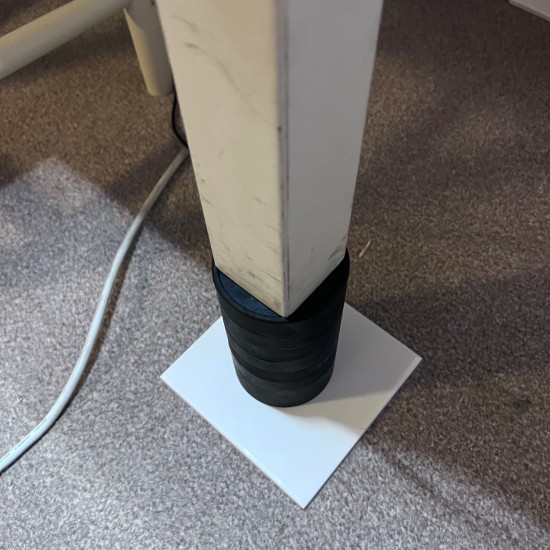

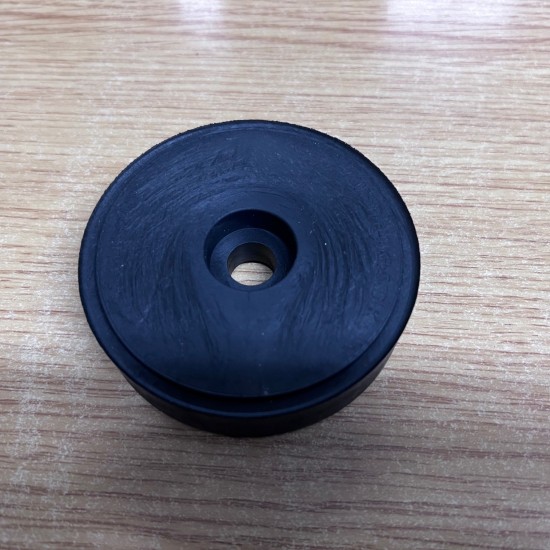

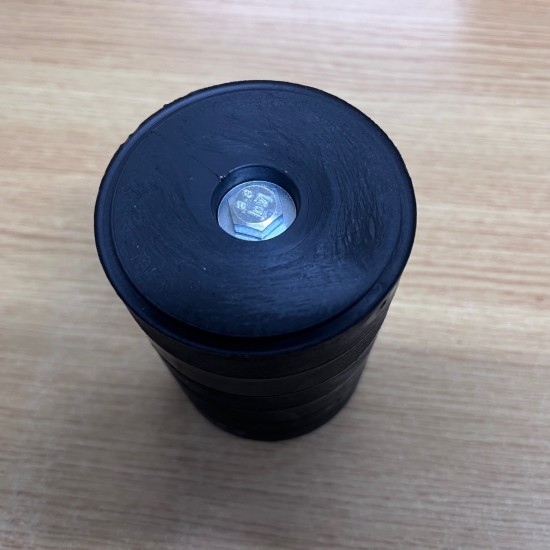

Usage - The rubber pads have a locating rib and stack together perfectly, preventing any sideways movement. They have an M12 hole through the centre and a 21mm x 8mm deep recess on the  underside . Add a 20mm washer here and you can insert an M6 or M8 bolt or screw to secure the rubber washer/washers to a piece of furniture or other application.

Weight Loads - Maximum recommended static vertical weight load per foot 500KG.

All of our products are designed and manufactured by ourselves Hawksworth Engineering in the UK, using the very latest production
technology to ensure that every single part we produce meets our design brief and your requirements.
